element remotes

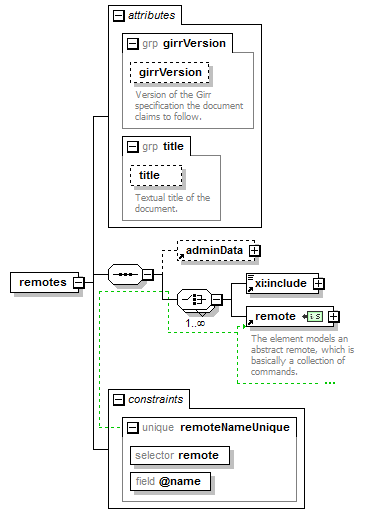

diagram girr_ns_p18.png
namespace http://www.harctoolbox.org/Girr
properties
content complex
children adminData xi:include remote
attributes
Name  Type  Use  Default  Fixed  annotation
girrVersionxs:string    1.0
documentation
Version of the Girr specification the document claims to follow.
titlexs:string
documentation
Textual title of the document.
identity constraints
  Name  Refer  Selector  Field(s)
unique  remoteNameUnique    remote  @name
source <xs:element name="remotes">

<xs:complexType>

<xs:annotation>

<xs:documentation>This element models a set of remotes. It may act as a data base for a program or device.

</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element ref="adminData" minOccurs="0"/>

<xs:choice maxOccurs="unbounded">

<xs:element ref="xi:include"/>

<xs:element ref="remote"/>

</xs:choice>

</xs:sequence>

<xs:attributeGroup ref="girrVersion"/>

<xs:attributeGroup ref="title"/>

</xs:complexType>

<xs:unique name="remoteNameUnique">

<xs:selector xpath="remote"/>

<xs:field xpath="@name"/>

</xs:unique>
</xs:element>
