element col

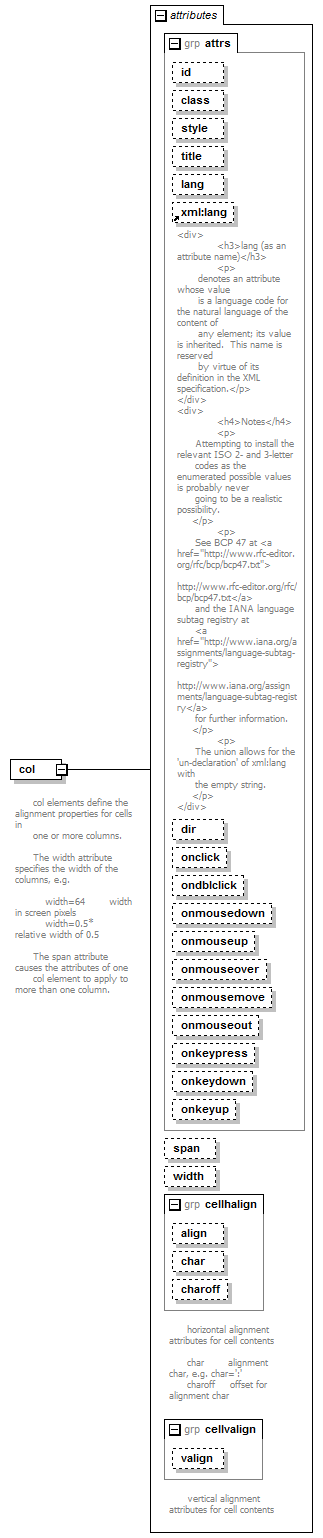

diagram girr_ns_p40.png
namespace http://www.w3.org/1999/xhtml
properties
content complex
used by
elements colgroup table
attributes
Name  Type  Use  Default  Fixed  annotation
idxs:ID
classxs:NMTOKENS
styleStyleSheet
titleText
langLanguageCode
lang
documentation
<div>
<h3>lang (as an attribute name)</h3>
<p>
       denotes an attribute whose value
       is a language code for the natural language of the content of
       any element; its value is inherited.  This name is reserved
       by virtue of its definition in the XML specification.</p>
</div>
<div>
<h4>Notes</h4>
<p>
      Attempting to install the relevant ISO 2- and 3-letter
      codes as the enumerated possible values is probably never
      going to be a realistic possibility.
     </p>
<p>
      See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">
       http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>
      and the IANA language subtag registry at
      <a href="http://www.iana.org/assignments/language-subtag-registry">
       http://www.iana.org/assignments/language-subtag-registry</a>
      for further information.
     </p>
<p>
      The union allows for the 'un-declaration' of xml:lang with
      the empty string.
     </p>
</div>
dirderived by: xs:token
onclickScript
ondblclickScript
onmousedownScript
onmouseupScript
onmouseoverScript
onmousemoveScript
onmouseoutScript
onkeypressScript
onkeydownScript
onkeyupScript
spanNumber  1
widthMultiLength
alignderived by: xs:token
charCharacter
charoffLength
valignderived by: xs:token
annotation
documentation

      col elements define the alignment properties for cells in
      one or more columns.

      The width attribute specifies the width of the columns, e.g.

          width=64        width in screen pixels
          width=0.5*      relative width of 0.5

      The span attribute causes the attributes of one
      col element to apply to more than one column.

source <xs:element name="col">

<xs:annotation>

<xs:documentation>
      col elements define the alignment properties for cells in
      one or more columns.

      The width attribute specifies the width of the columns, e.g.

          width=64        width in screen pixels
          width=0.5*      relative width of 0.5

      The span attribute causes the attributes of one
      col element to apply to more than one column.

</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:attributeGroup ref="attrs"/>

<xs:attribute name="span" type="Number" default="1"/>

<xs:attribute name="width" type="MultiLength"/>

<xs:attributeGroup ref="cellhalign"/>

<xs:attributeGroup ref="cellvalign"/>

</xs:complexType>
</xs:element>

attribute col/@span
type Number
properties
isRef 0
default 1
facets
Kind Value annotation
pattern [0-9]+
source <xs:attribute name="span" type="Number" default="1"/>

attribute col/@width
type MultiLength
properties
isRef 0
facets
Kind Value annotation
pattern [-+]?(\d+|\d+(\.\d+)?%)|[1-9]?(\d+)?\*
source <xs:attribute name="width" type="MultiLength"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
