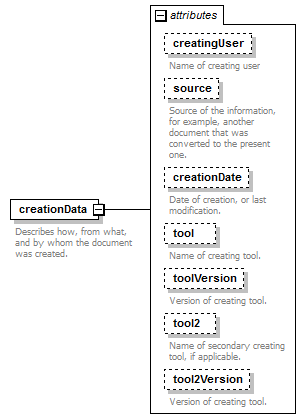

diagram | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
namespace | http://www.harctoolbox.org/Girr | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
annotation |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
source | <xs:element name="creationData"> <xs:annotation> <xs:documentation>Describes how, from what, and by whom the document was created.</xs:documentation> </xs:annotation> <xs:complexType> <xs:attribute name="creatingUser" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Name of creating user</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="source" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Source of the information, for example, another document that was converted to the present one.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="creationDate" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Date of creation, or last modification.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="tool" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Name of creating tool.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="toolVersion" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Version of creating tool.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="tool2" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Name of secondary creating tool, if applicable.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="tool2Version" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Version of creating tool.</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> </xs:element> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="creatingUser" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Name of creating user</xs:documentation> </xs:annotation> </xs:attribute> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="source" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Source of the information, for example, another document that was converted to the present one.</xs:documentation> </xs:annotation> </xs:attribute> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="creationDate" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Date of creation, or last modification.</xs:documentation> </xs:annotation> </xs:attribute> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="tool" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Name of creating tool.</xs:documentation> </xs:annotation> </xs:attribute> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="toolVersion" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Version of creating tool.</xs:documentation> </xs:annotation> </xs:attribute> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="tool2" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Name of secondary creating tool, if applicable.</xs:documentation> </xs:annotation> </xs:attribute> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="tool2Version" type="xs:string" use="optional"> <xs:annotation> <xs:documentation>Version of creating tool.</xs:documentation> </xs:annotation> </xs:attribute> |
