element img

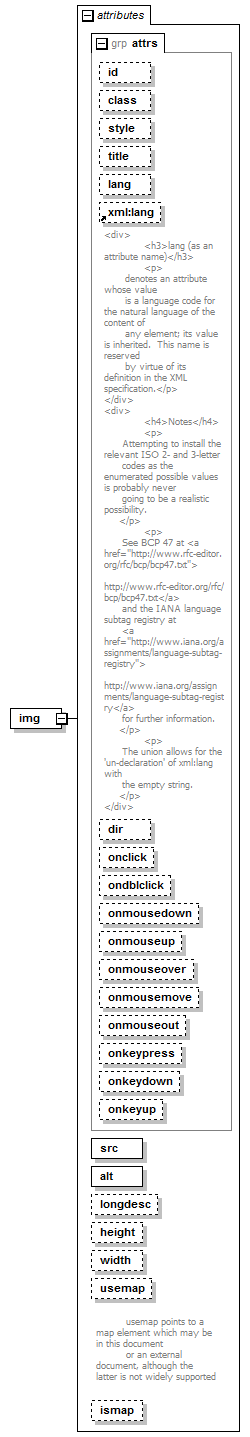

diagram
namespace	http://www.w3.org/1999/xhtml
properties	content  complex
used by	element  remote group  special
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          class xs:NMTOKENS          style StyleSheet          title Text          lang LanguageCode          lang          documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div> dir derived by: xs:token          onclick Script          ondblclick Script          onmousedown Script          onmouseup Script          onmouseover Script          onmousemove Script          onmouseout Script          onkeypress Script          onkeydown Script          onkeyup Script          src URI required         alt Text required         longdesc URI          height Length          width Length          usemap URI          documentation           usemap points to a map element which may be in this document           or an external document, although the latter is not widely supported           ismap derived by: xs:token
source	<xs:element name="img">   <xs:complexType>     <xs:attributeGroup ref="attrs"/>     <xs:attribute name="src" type="URI" use="required"/>     <xs:attribute name="alt" type="Text" use="required"/>     <xs:attribute name="longdesc" type="URI"/>     <xs:attribute name="height" type="Length"/>     <xs:attribute name="width" type="Length"/>     <xs:attribute name="usemap" type="URI">       <xs:annotation>         <xs:documentation>           usemap points to a map element which may be in this document           or an external document, although the latter is not widely supported           </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ismap">       <xs:simpleType>         <xs:restriction base="xs:token">           <xs:enumeration value="ismap"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute img/@src

type	URI
properties	isRef  0 use  required
source	<xs:attribute name="src" type="URI" use="required"/>

attribute img/@alt

type	Text
properties	isRef  0 use  required
source	<xs:attribute name="alt" type="Text" use="required"/>

attribute img/@longdesc

type	URI
properties	isRef  0
source	<xs:attribute name="longdesc" type="URI"/>

attribute img/@height

type	Length
properties	isRef  0
facets	Kind  Value  annotation  pattern  [-+]?(\d+|\d+(\.\d+)?%)
source	<xs:attribute name="height" type="Length"/>

attribute img/@width

type	Length
properties	isRef  0
facets	Kind  Value  annotation  pattern  [-+]?(\d+|\d+(\.\d+)?%)
source	<xs:attribute name="width" type="Length"/>

attribute img/@usemap

type	URI
properties	isRef  0
annotation	documentation           usemap points to a map element which may be in this document           or an external document, although the latter is not widely supported
source	<xs:attribute name="usemap" type="URI">   <xs:annotation>     <xs:documentation>           usemap points to a map element which may be in this document           or an external document, although the latter is not widely supported           </xs:documentation>   </xs:annotation> </xs:attribute>

attribute img/@ismap

type	restriction of xs:token
properties	isRef  0
facets	Kind  Value  annotation  enumeration  ismap
source	<xs:attribute name="ismap">   <xs:simpleType>     <xs:restriction base="xs:token">       <xs:enumeration value="ismap"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>
