element parameters

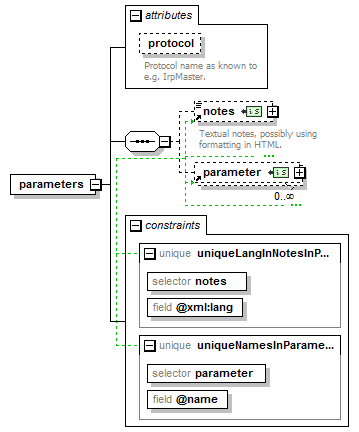

diagram girr_ns_p15.png
namespace http://www.harctoolbox.org/Girr
properties
content complex
children notes parameter
used by
elements command commandSet
attributes
Name  Type  Use  Default  Fixed  annotation
protocolxs:stringoptional
documentation
Protocol name as known to e.g. IrpMaster.
identity constraints
  Name  Refer  Selector  Field(s)
unique  uniqueLangInNotesInParameters    notes  @xml:lang
unique  uniqueNamesInParameters    parameter  @name
source <xs:element name="parameters">

<xs:complexType>

<xs:sequence>

<xs:element ref="notes" minOccurs="0"/>

<xs:element ref="parameter" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="protocol" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>Protocol name as known to e.g. IrpMaster.</xs:documentation>

</xs:annotation>

</xs:attribute>

</xs:complexType>

<xs:unique name="uniqueLangInNotesInParameters">

<xs:selector xpath="notes"/>

<xs:field xpath="@xml:lang"/>

</xs:unique>

<xs:unique name="uniqueNamesInParameters">

<xs:selector xpath="parameter"/>

<xs:field xpath="@name"/>

</xs:unique>
</xs:element>

attribute parameters/@protocol
type xs:string
properties
isRef 0
use optional
annotation
documentation
Protocol name as known to e.g. IrpMaster.
source <xs:attribute name="protocol" type="xs:string" use="optional">

<xs:annotation>

<xs:documentation>Protocol name as known to e.g. IrpMaster.</xs:documentation>

</xs:annotation>
</xs:attribute>
