element area

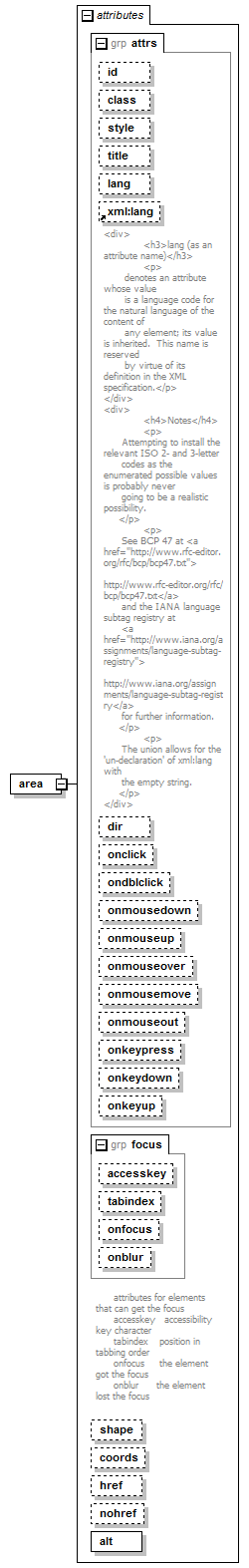

diagram
namespace	http://www.w3.org/1999/xhtml
properties	content  complex
used by	element  map
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          class xs:NMTOKENS          style StyleSheet          title Text          lang LanguageCode          lang          documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div> dir derived by: xs:token          onclick Script          ondblclick Script          onmousedown Script          onmouseup Script          onmouseover Script          onmousemove Script          onmouseout Script          onkeypress Script          onkeydown Script          onkeyup Script          accesskey Character          tabindex tabindexNumber          onfocus Script          onblur Script          shape Shape    rect      coords Coords          href URI          nohref derived by: xs:token          alt Text required
source	<xs:element name="area">   <xs:complexType>     <xs:attributeGroup ref="attrs"/>     <xs:attributeGroup ref="focus"/>     <xs:attribute name="shape" type="Shape" default="rect"/>     <xs:attribute name="coords" type="Coords"/>     <xs:attribute name="href" type="URI"/>     <xs:attribute name="nohref">       <xs:simpleType>         <xs:restriction base="xs:token">           <xs:enumeration value="nohref"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="alt" type="Text" use="required"/>   </xs:complexType> </xs:element>

attribute area/@shape

type	Shape
properties	isRef  0 default  rect
facets	Kind  Value  annotation  enumeration  rect  enumeration  circle  enumeration  poly  enumeration  default
source	<xs:attribute name="shape" type="Shape" default="rect"/>

attribute area/@coords

type	Coords
properties	isRef  0
facets	Kind  Value  annotation  pattern  [-+]?(\d+|\d+(\.\d+)?%)(,\s*[-+]?(\d+|\d+(\.\d+)?%))*
source	<xs:attribute name="coords" type="Coords"/>

attribute area/@href

type	URI
properties	isRef  0
source	<xs:attribute name="href" type="URI"/>

attribute area/@nohref

type	restriction of xs:token
properties	isRef  0
facets	Kind  Value  annotation  enumeration  nohref
source	<xs:attribute name="nohref">   <xs:simpleType>     <xs:restriction base="xs:token">       <xs:enumeration value="nohref"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute area/@alt

type	Text
properties	isRef  0 use  required
source	<xs:attribute name="alt" type="Text" use="required"/>
