element input

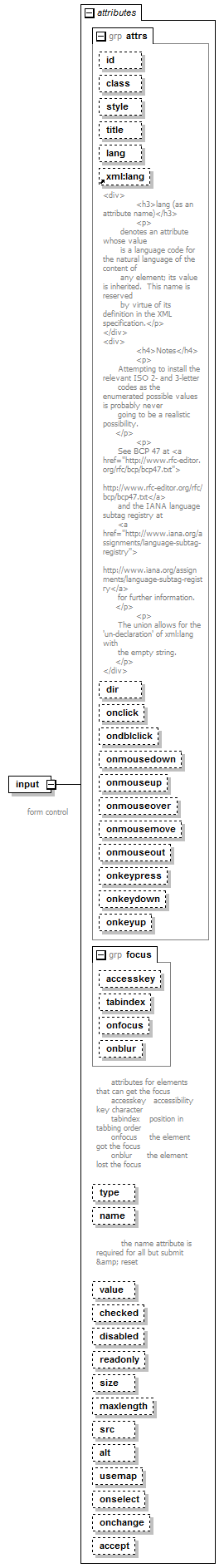

diagram
namespace	http://www.w3.org/1999/xhtml
properties	content  complex
used by	group  inline.forms
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          class xs:NMTOKENS          style StyleSheet          title Text          lang LanguageCode          lang          documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div> dir derived by: xs:token          onclick Script          ondblclick Script          onmousedown Script          onmouseup Script          onmouseover Script          onmousemove Script          onmouseout Script          onkeypress Script          onkeydown Script          onkeyup Script          accesskey Character          tabindex tabindexNumber          onfocus Script          onblur Script          type InputType    text      name          documentation           the name attribute is required for all but submit &amp; reset           value          checked derived by: xs:token          disabled derived by: xs:token          readonly derived by: xs:token          size          maxlength Number          src URI          alt          usemap URI          onselect Script          onchange Script          accept ContentTypes
annotation	documentation       form control
source	<xs:element name="input">   <xs:annotation>     <xs:documentation>       form control       </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attributeGroup ref="attrs"/>     <xs:attributeGroup ref="focus"/>     <xs:attribute name="type" type="InputType" default="text"/>     <xs:attribute name="name">       <xs:annotation>         <xs:documentation>           the name attribute is required for all but submit &amp; reset           </xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="value"/>     <xs:attribute name="checked">       <xs:simpleType>         <xs:restriction base="xs:token">           <xs:enumeration value="checked"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="disabled">       <xs:simpleType>         <xs:restriction base="xs:token">           <xs:enumeration value="disabled"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="readonly">       <xs:simpleType>         <xs:restriction base="xs:token">           <xs:enumeration value="readonly"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="size"/>     <xs:attribute name="maxlength" type="Number"/>     <xs:attribute name="src" type="URI"/>     <xs:attribute name="alt"/>     <xs:attribute name="usemap" type="URI"/>     <xs:attribute name="onselect" type="Script"/>     <xs:attribute name="onchange" type="Script"/>     <xs:attribute name="accept" type="ContentTypes"/>   </xs:complexType> </xs:element>

attribute input/@type

type	InputType
properties	isRef  0 default  text
facets	Kind  Value  annotation  enumeration  text  enumeration  password  enumeration  checkbox  enumeration  radio  enumeration  submit  enumeration  reset  enumeration  file  enumeration  hidden  enumeration  image  enumeration  button
source	<xs:attribute name="type" type="InputType" default="text"/>

attribute input/@name

properties	isRef  0
annotation	documentation           the name attribute is required for all but submit & reset
source	<xs:attribute name="name">   <xs:annotation>     <xs:documentation>           the name attribute is required for all but submit &amp; reset           </xs:documentation>   </xs:annotation> </xs:attribute>

attribute input/@value

properties	isRef  0
source	<xs:attribute name="value"/>

attribute input/@checked

type	restriction of xs:token
properties	isRef  0
facets	Kind  Value  annotation  enumeration  checked
source	<xs:attribute name="checked">   <xs:simpleType>     <xs:restriction base="xs:token">       <xs:enumeration value="checked"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/@disabled

type	restriction of xs:token
properties	isRef  0
facets	Kind  Value  annotation  enumeration  disabled
source	<xs:attribute name="disabled">   <xs:simpleType>     <xs:restriction base="xs:token">       <xs:enumeration value="disabled"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/@readonly

type	restriction of xs:token
properties	isRef  0
facets	Kind  Value  annotation  enumeration  readonly
source	<xs:attribute name="readonly">   <xs:simpleType>     <xs:restriction base="xs:token">       <xs:enumeration value="readonly"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute input/@size

properties	isRef  0
source	<xs:attribute name="size"/>

attribute input/@maxlength

type	Number
properties	isRef  0
facets	Kind  Value  annotation  pattern  [0-9]+
source	<xs:attribute name="maxlength" type="Number"/>

attribute input/@src

type	URI
properties	isRef  0
source	<xs:attribute name="src" type="URI"/>

attribute input/@alt

properties	isRef  0
source	<xs:attribute name="alt"/>

attribute input/@usemap

type	URI
properties	isRef  0
source	<xs:attribute name="usemap" type="URI"/>

attribute input/@onselect

type	Script
properties	isRef  0
source	<xs:attribute name="onselect" type="Script"/>

attribute input/@onchange

type	Script
properties	isRef  0
source	<xs:attribute name="onchange" type="Script"/>

attribute input/@accept

type	ContentTypes
properties	isRef  0
source	<xs:attribute name="accept" type="ContentTypes"/>
